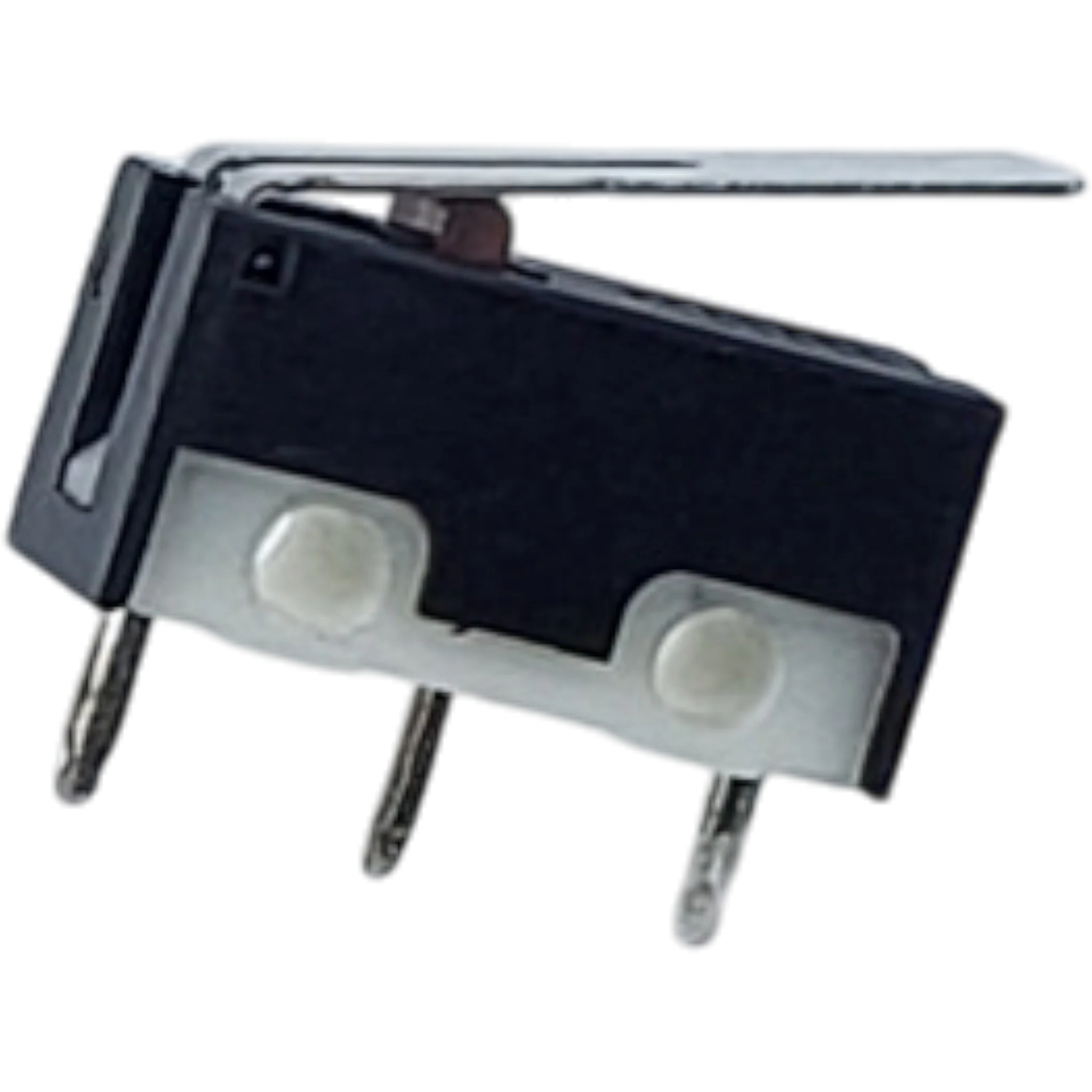

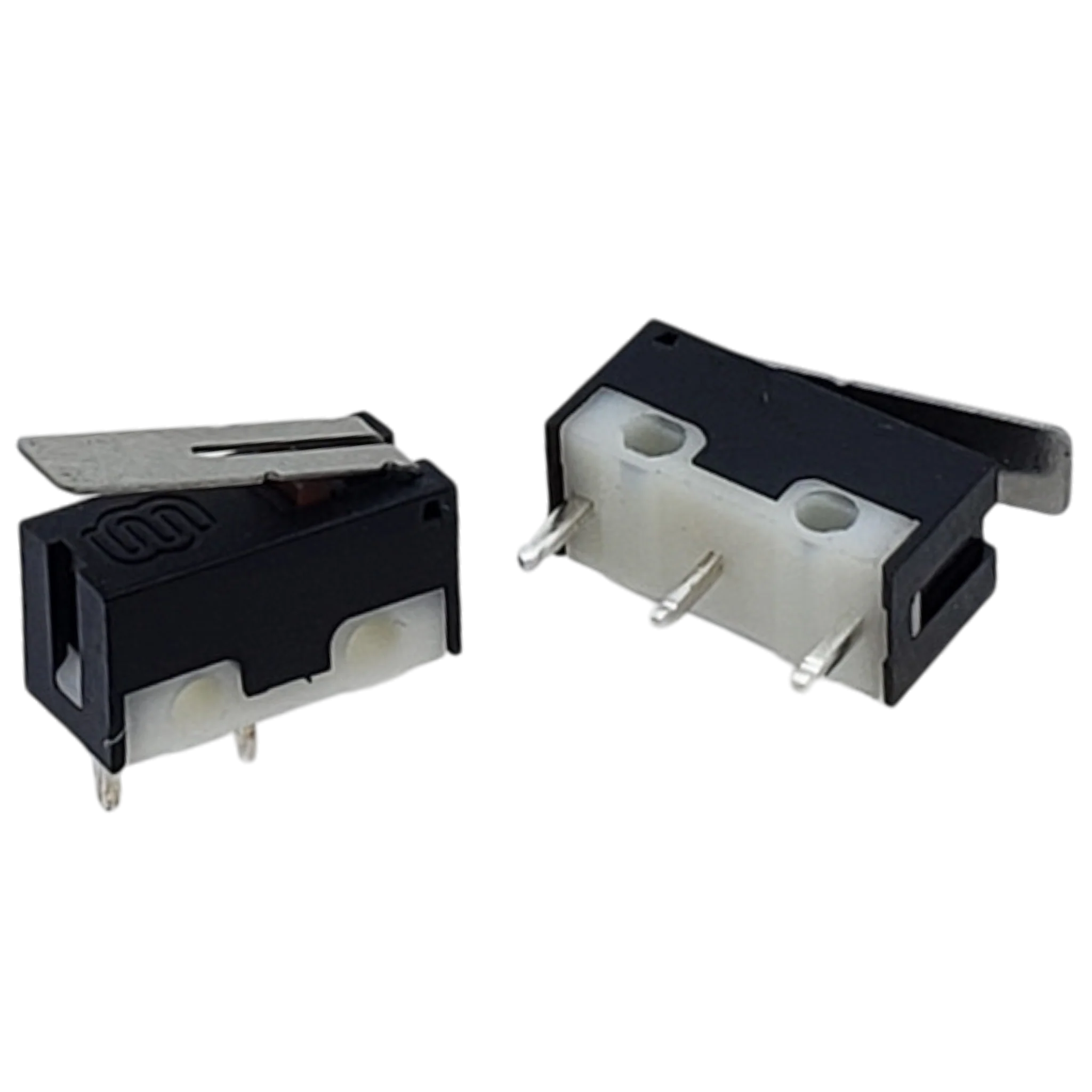

1A Momentary Microswitch SPDT

1A Momentary Microswitch

This compact 1P2T micro switch is a small snap-action switch designed for low-current control, signal switching, limit detection, and general electronics applications. With a single-pole double-throw contact configuration, this switch can be used in circuits that require common, normally open, and normally closed connections.

SPDT Micro Switch For Electronics Projects

The SPDT micro switch design makes this part useful for detecting mechanical movement, door position, actuator travel, lever movement, and other simple on/off or changeover functions. It is commonly used in hobby electronics, small appliances, control panels, test fixtures, and low-current equipment where a compact mechanical switch is needed.

Technical Specifications

Switch Type	Micro Switch / Snap Action Switch
Contact Configuration	1P2T / SPDT
Electrical Rating	1A at 125VAC
Operating Force	30 +/- 15 gf
Product Reference	X-4117

Compact 1A Micro Switch For Control Circuits

This 1A micro switch is intended for light-duty switching applications where a small mechanical switch is preferred over a larger panel or toggle switch. The snap-action mechanism helps provide a quick contact transition when the actuator is pressed, making it suitable for simple limit switch, trigger switch, and position sensing applications.

Use this 1P2T SPDT micro switch in low-current AC control circuits, prototyping, repair work, robotics, model projects, and other electronics assemblies that require a compact switch rated for up to 1A at 125VAC.
