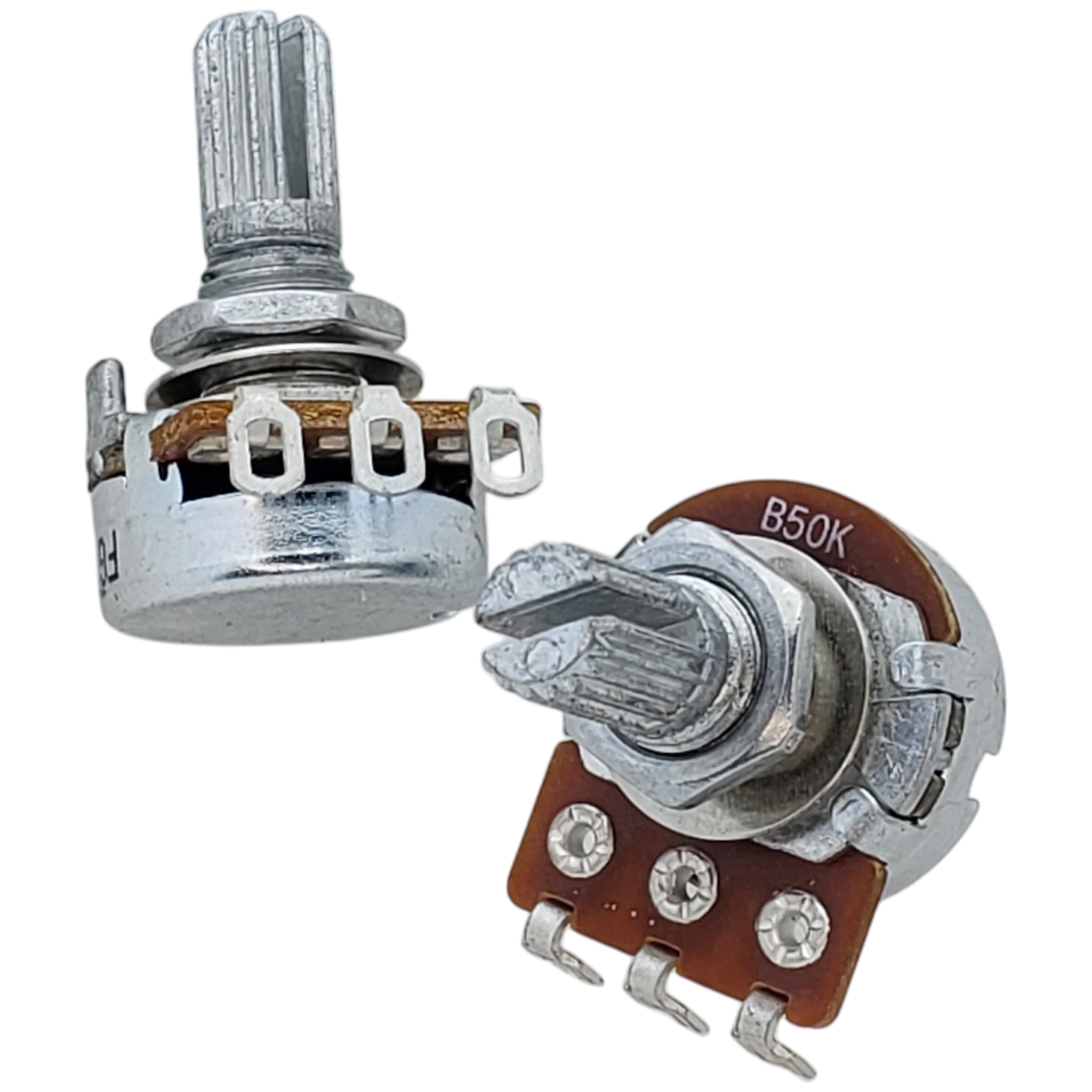

50K 1/8 Watt Linear Taper Potentiometer
50K 1/8 Watt Linear Taper Potentiometer
This 50K linear taper potentiometer is a compact variable resistor designed for electronics projects, repairs, control panels, audio circuits, test equipment, and general low-power adjustment applications. The linear taper provides a steady, proportional resistance change as the shaft is rotated, making it useful for controls that need predictable adjustment across the full rotation range.
50K Linear Potentiometer With Solder Lugs
The solder lug terminals make this 50K potentiometer easy to wire into custom circuits, prototypes, and replacement applications. It features a 6mm knurled split splined shaft for use with compatible potentiometer knobs and a threaded bushing for panel mounting.
Technical Specifications
| Resistance | 50K ohm |
| Taper | Linear taper |
| Power Rating | 1/8 watt / 0.125W |
| Termination | Solder lugs |
| Adjustment Type | Top adjustment |
| Shaft Type | Knurled / splined shaft |
| Shaft Diameter | 6mm |
| Shaft Length | 17mm total |
| Thread Length | 6.5mm |
| Mounting Hole | 7.5mm |
| Base Diameter | 16mm |
| Rotation Angle | 300 +/- 5 degrees |
Split Splined Shaft Potentiometer For Low-Power Control Circuits
This 50K 1/8 watt potentiometer is suitable for low-power signal adjustment, voltage divider circuits, trim controls, user-adjustable settings, and other applications where a compact panel-mount variable resistor is needed. The linear response makes it a good choice for controls where the output should change evenly as the knob is turned.
Use this linear taper potentiometer for electronics repair, hobby projects, DIY control panels, small instruments, and prototype circuits that require a 50K ohm variable resistor with solder lugs and a 6mm splined potentiometer shaft.
